- Available in narrow and wide equipment cart versions
- Modular construction
- Convenient cable management in the rear panel
- Solution for individual clinical requirements
- Interdisciplinary use
- Isolating transformers as efficient safety features
- Wide range of accessories

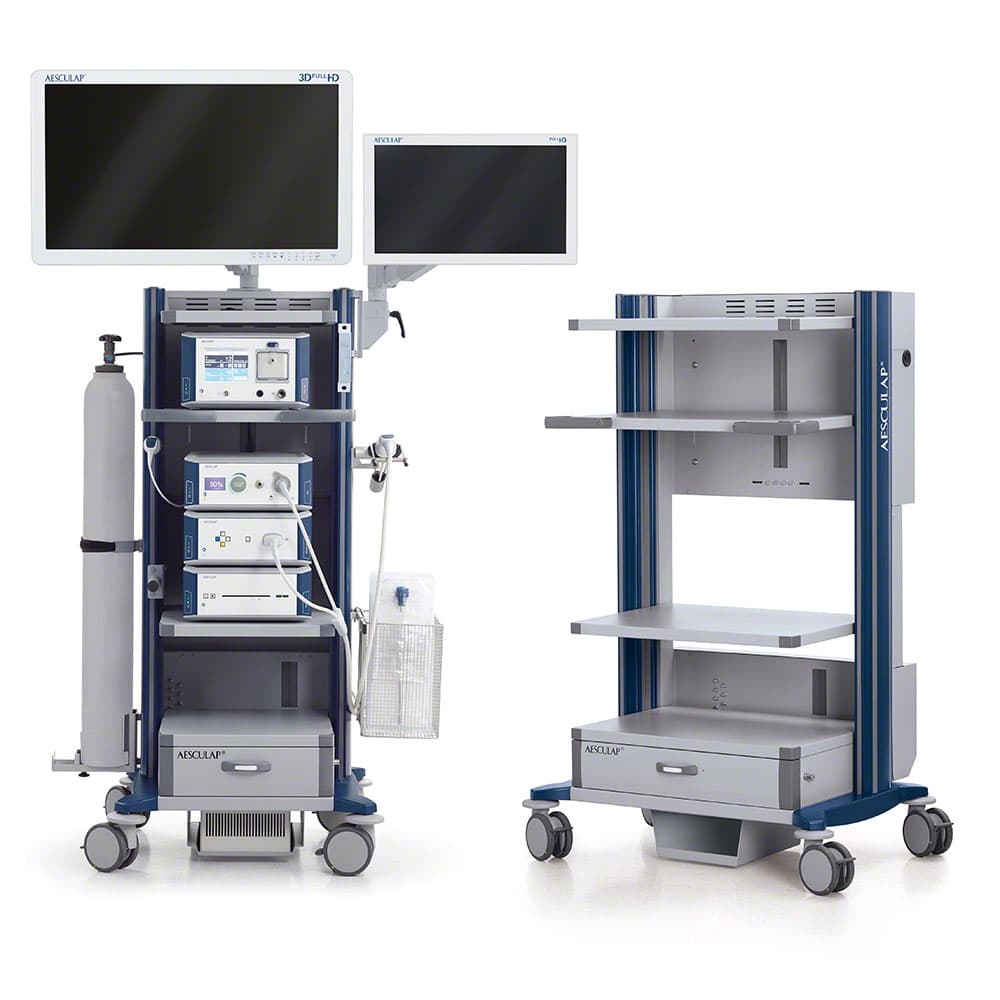

Basic equipment cart PV800 (narrow) and PV810 (wide)
- Four tableaus, three of them are height-adjustable and one tableau with corner push handles on the front
- Drawer with lock
- Four anti-static twin castors with wall guards, all lockable, diameter 125 mm
- Integrated cable channels in the columns
- Double upper and lower lockable rear wall with two power strips each with six cold-device plugs
- Upper rear wall with integrated cable outlet on each side
- Base socket
- Lateral main switch
PV800 Basic equipment cart (narrow)
- Equipment cart: 703 mm x 1506 mm x 663 mm (WxHxD)
- Utility space tableau: 450 mm x 485 mm (WxD)
- POAG Connections: 8 equipotential bonding conductor connections
PV810 Basic equipment cart (wide)
- Equipment cart: 942 mm x 1506 mm x 663 mm (WxHxD)
- Utility space tableau: 690 mm x 485 mm (WxD)
- POAG Connections: 12 equipotential bonding conductor connections
